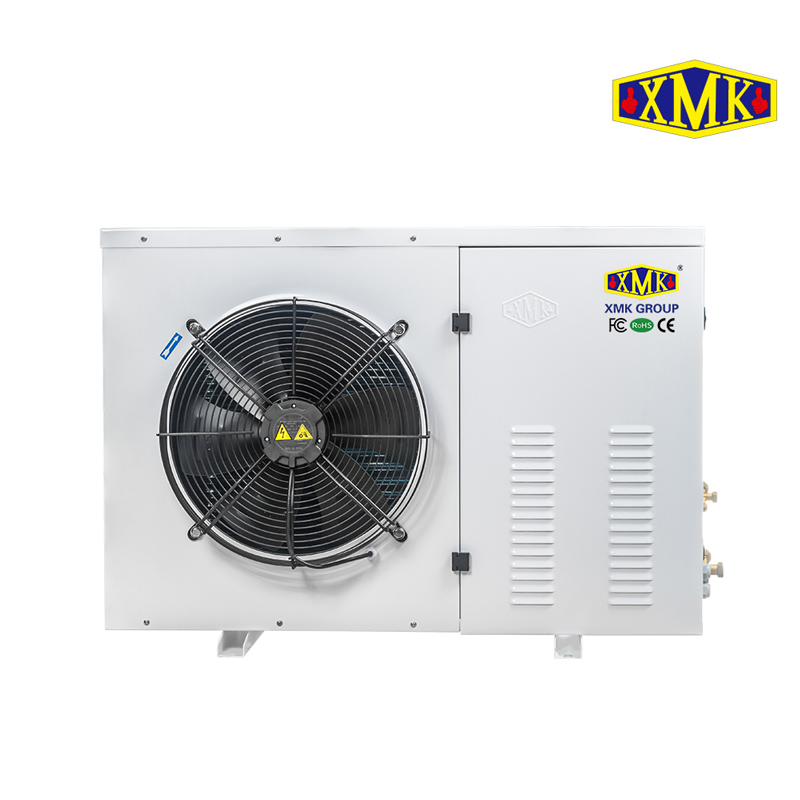

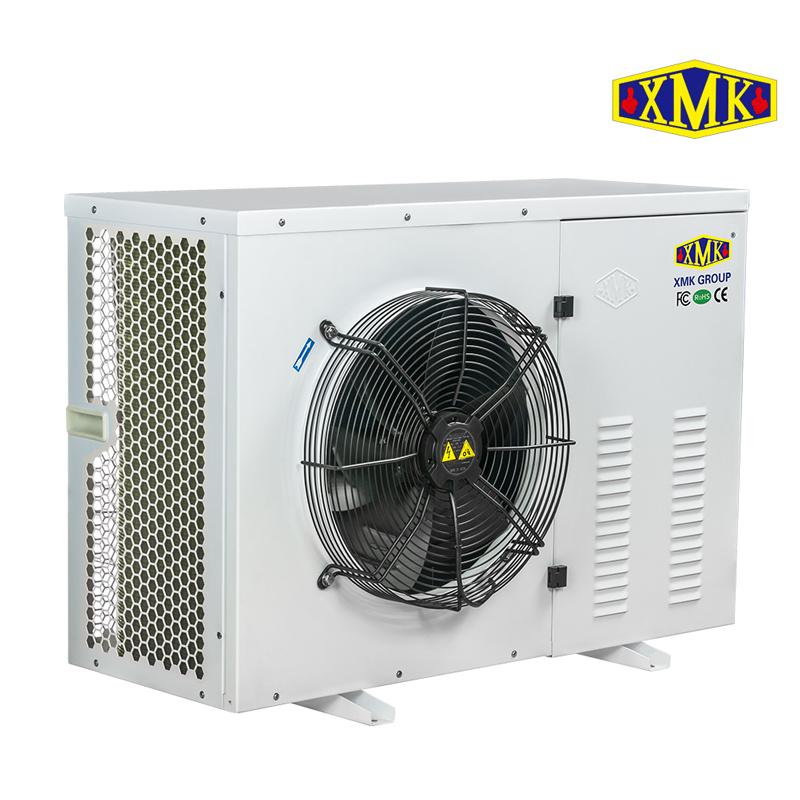

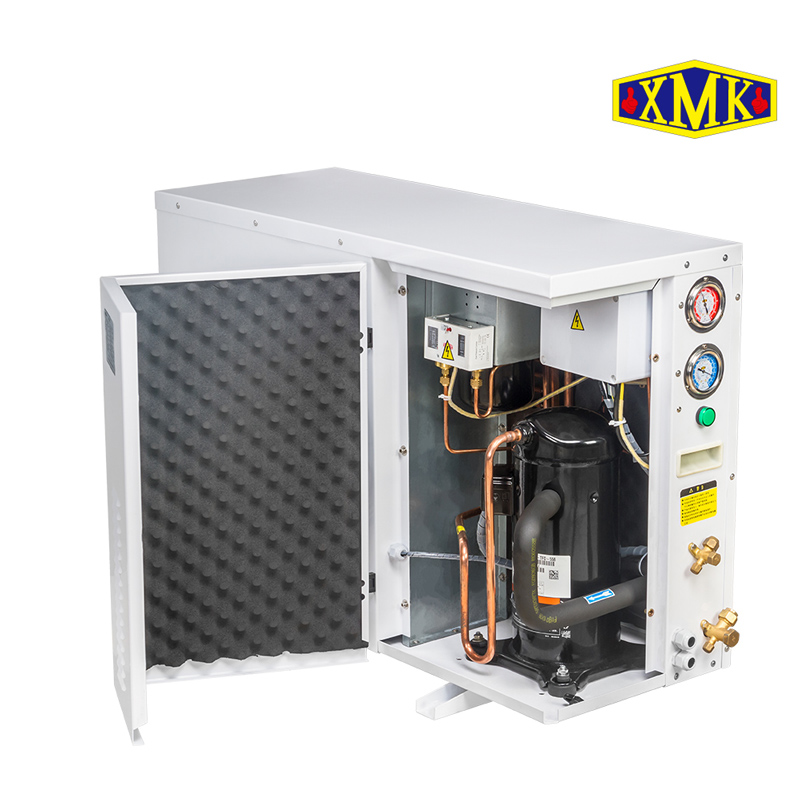

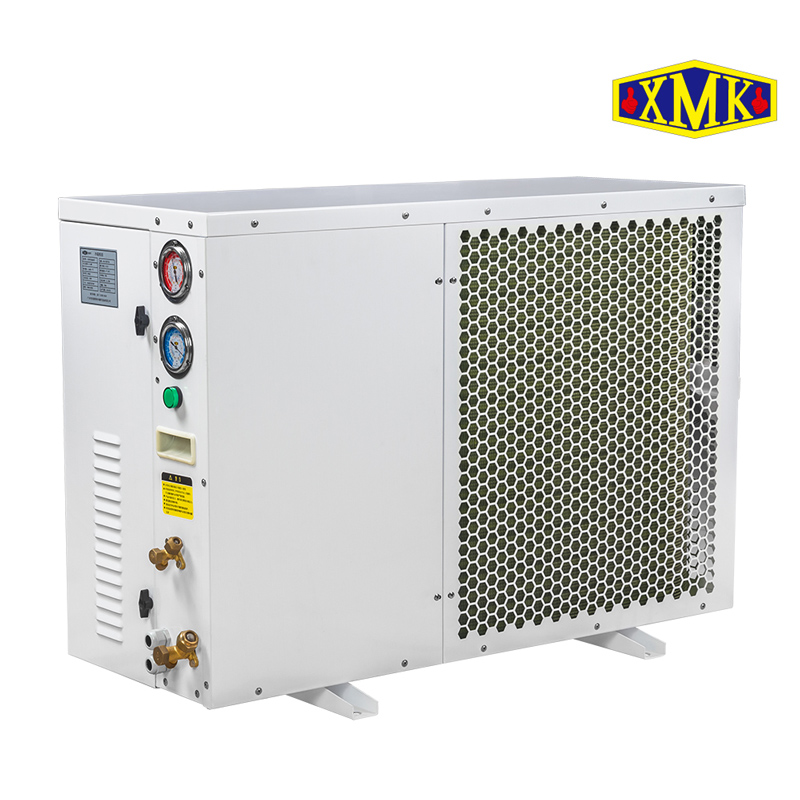

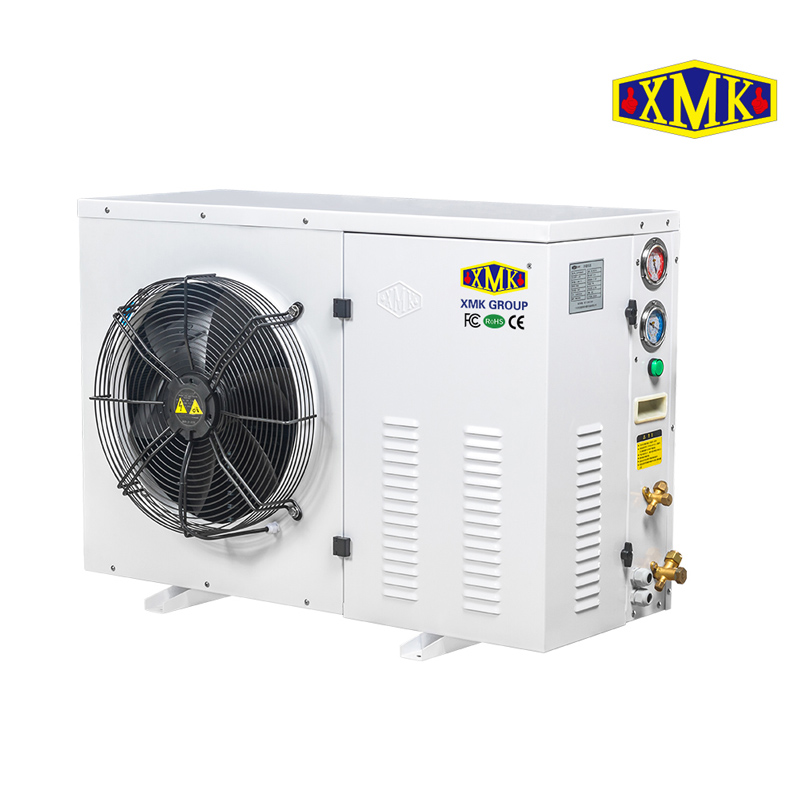

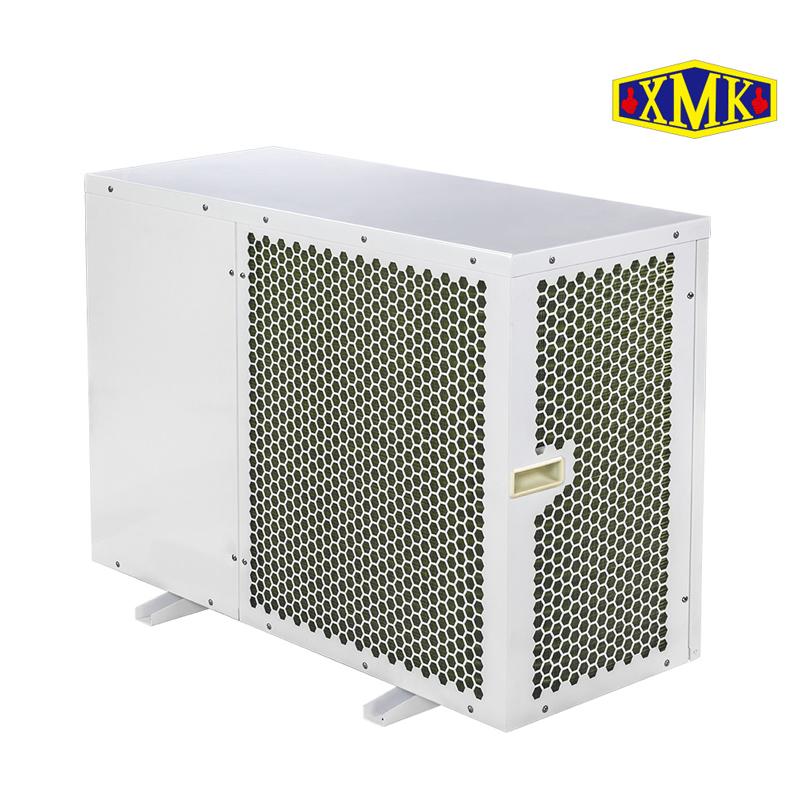

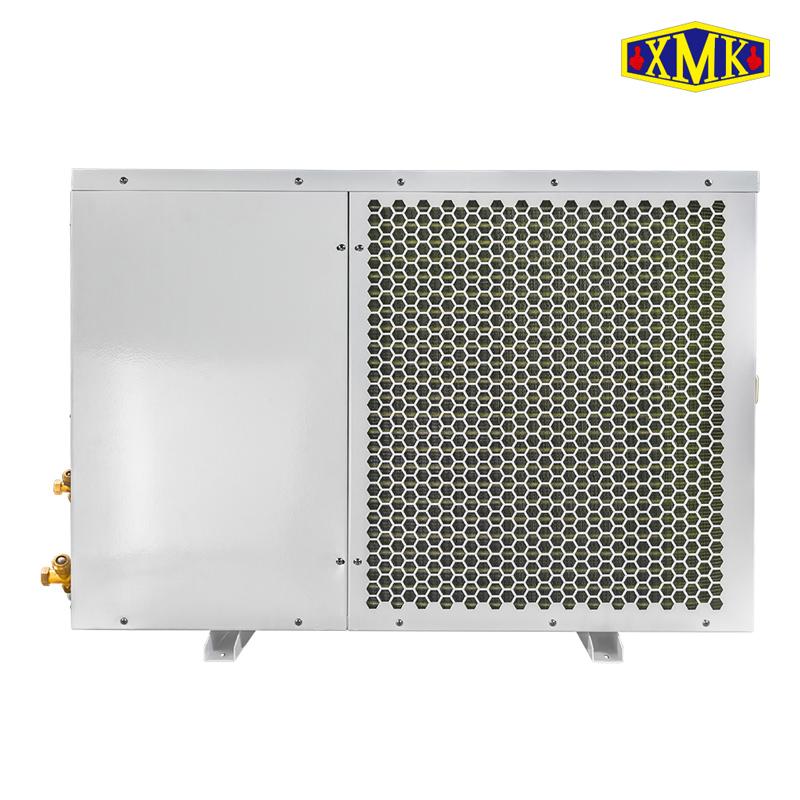

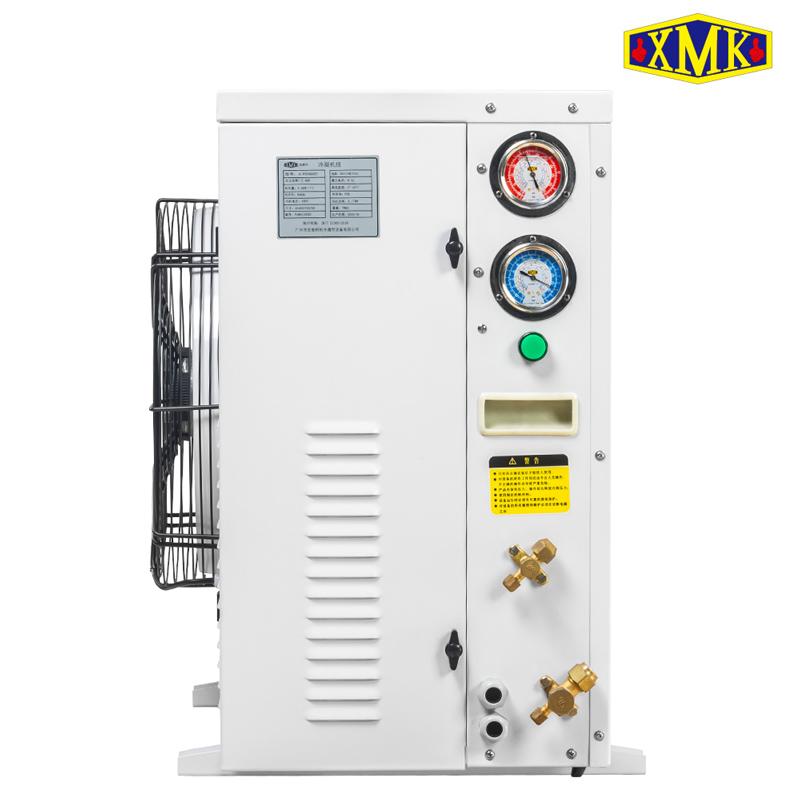

ZB15KQE Cold Rooom Copeland Condensing Unit

  • 货号:

    ZB15KQE
  • 订购 (最小量):

    1
  • 付款:

    EX-WORK
  • 市场价:

    759
  • 原产地:

    USA
  • 颜色:

    White
  • 发货港口:

    Guangzhou
  • 发货周期:

    15 to 20 days

ZB15KQE Copeland ZB Compressor Cold Room


Product description:


This BUW-A series products with Emerson scroll compressor,applicable to cold display cabi-nets, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5'C~ 10"C.-l0'C~ -18C-18'C~-23"C. They can be widely used in hotels, restaurants, medicines, agricultur-al, chemicals industries all other place where cold storage is needed.


1.Products adopt vertical box-type structure,compact structure design, excellent appear-ance.


2.The cover of the case adopts hinge structure,which is easy to maintain and operate.


3.Compressor uses Emerson ZB series scrollcompressor and ZSI series scroll compressorwith DTC spray to meet the application ofmedium temperature and low temperaturerespectively.


4.Adopt L-type condenser, it has large windwardside, small wind resistance and good heat


transfer effect.


5.Adopt 6-pole external rotor motor with lowspeed and low noise.


6.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.


 Copeland ZB15KQE Condensing Unit Catalogue:


Power Supply  380V 50Hz 3phase
Apply Temp. -15 to -5 degree
Compressor Model ZB15KQE
Compressor Max.I(A) 6
Fan Voltage (V) 380V 50Hz 3phase
Fan Current (A) 0.5
Rev.(r/min)910
Suction Line (mm) 19
Liquid Line (mm) 9.5
Size length (mm) 1040
Size Width (mm) 570
Size Height (mm) 700
