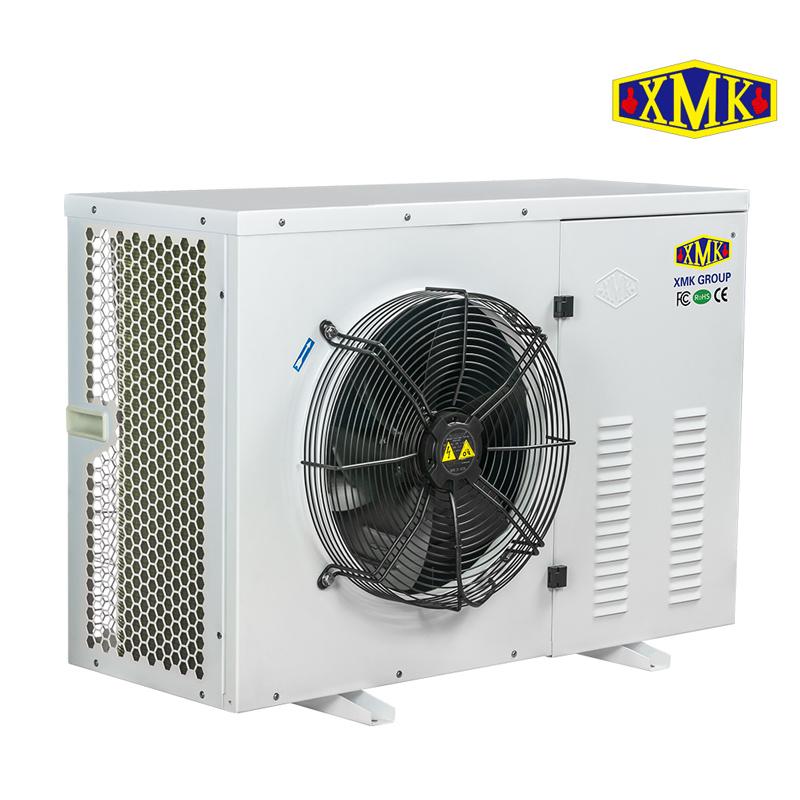

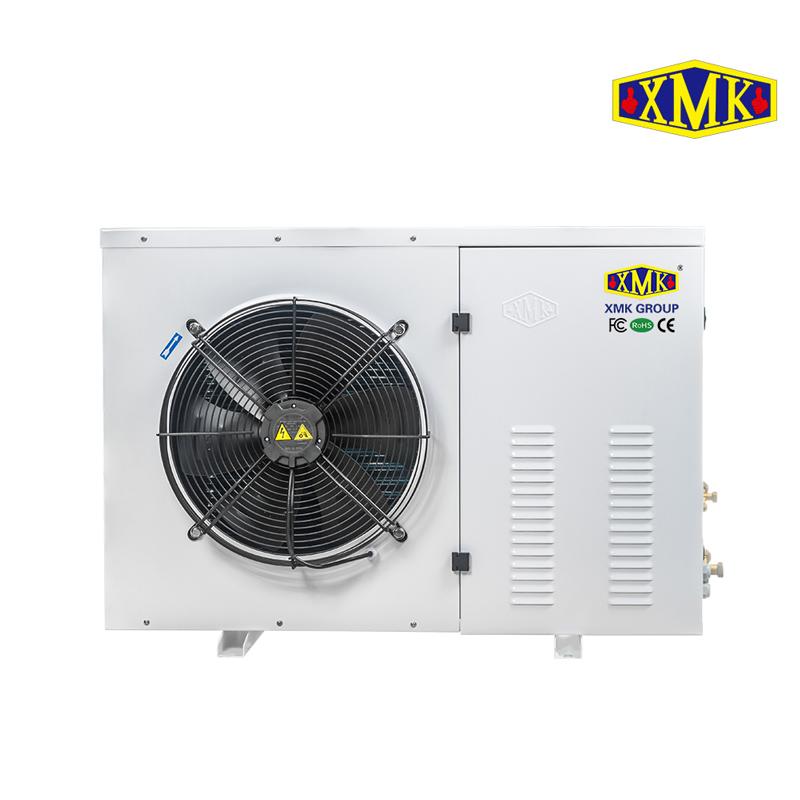

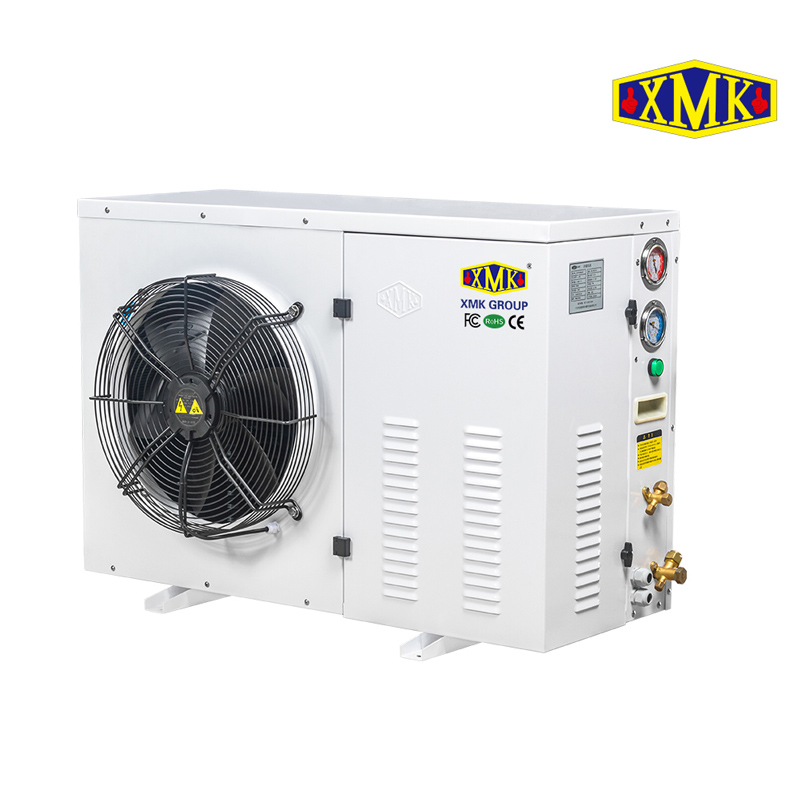

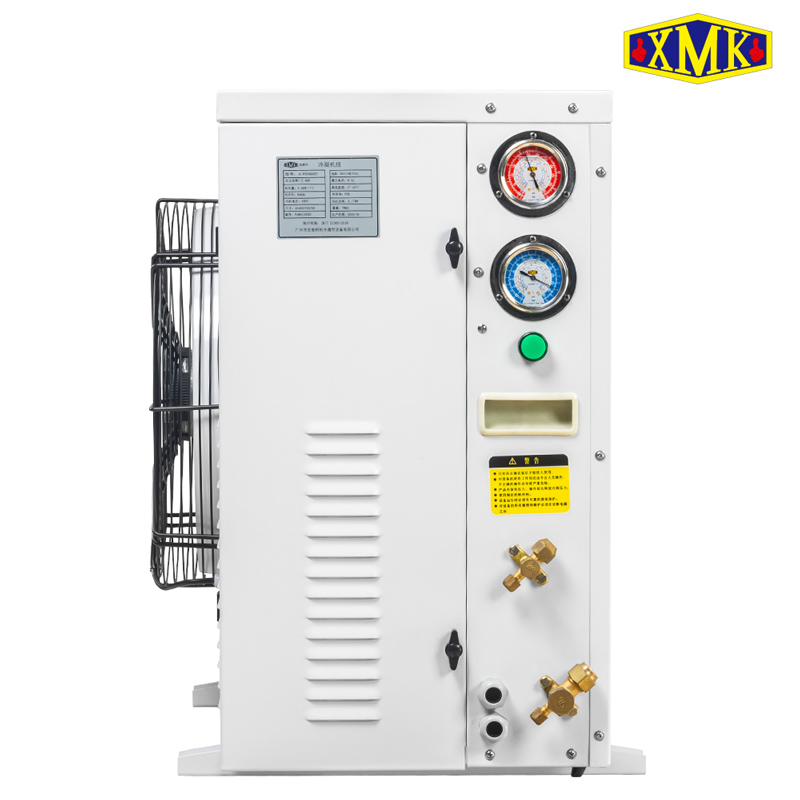

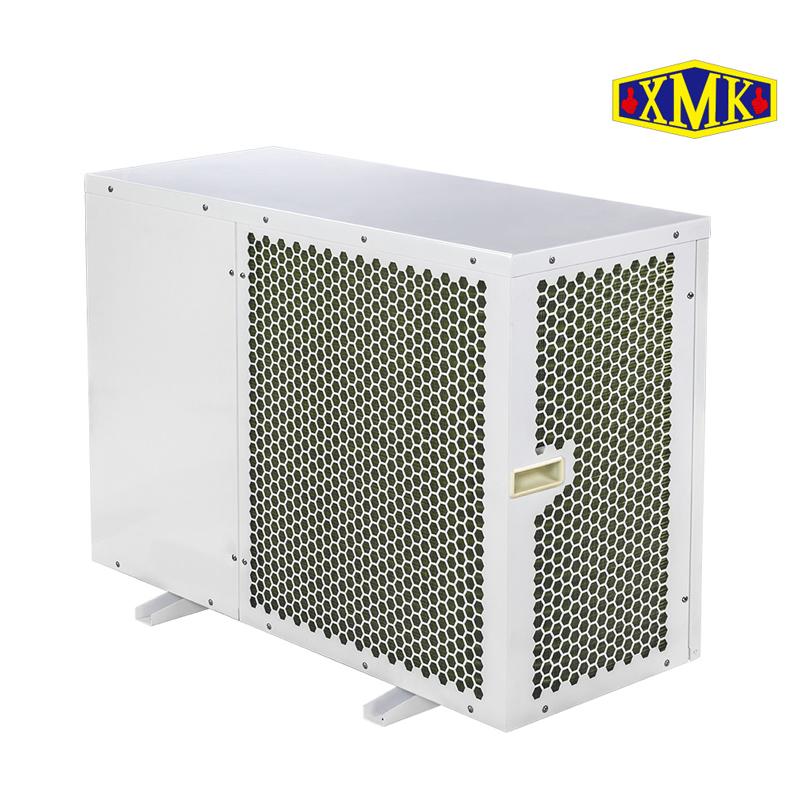

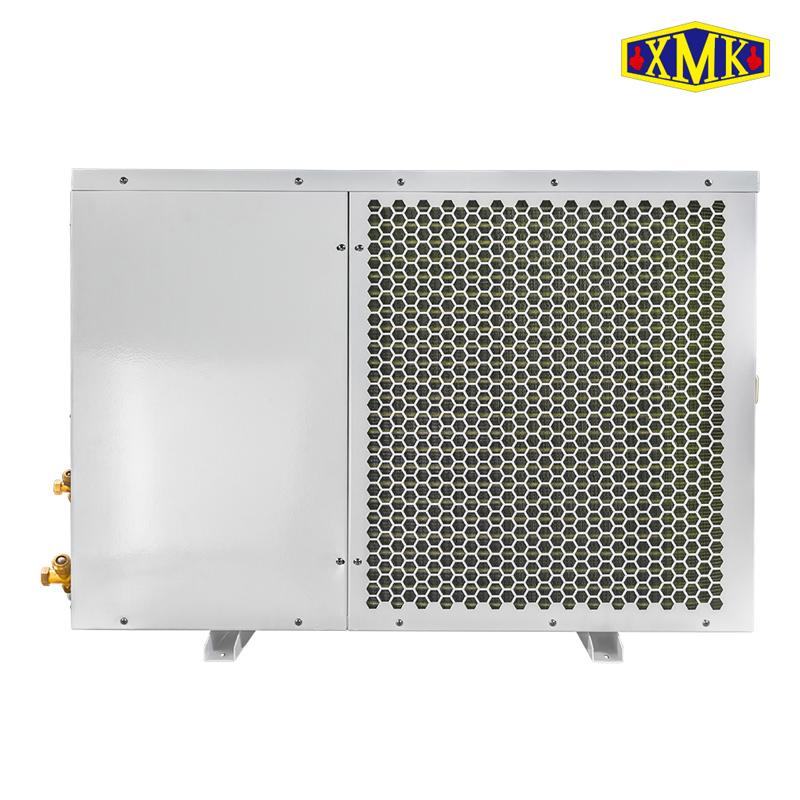

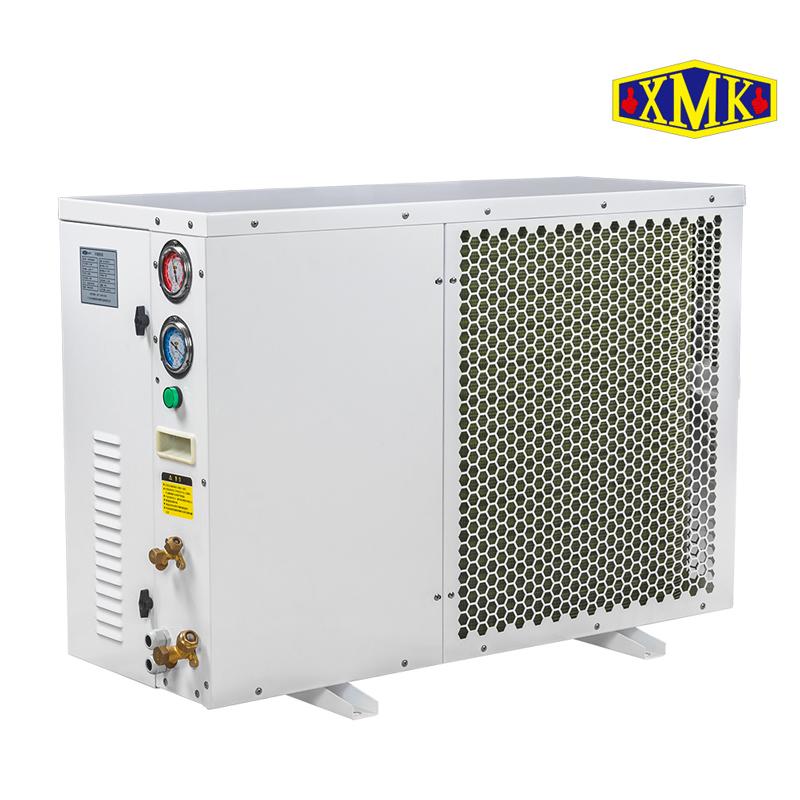

BUW-A系列箱型冷凝机组（中温）

BUW-A系列箱型冷凝机组（中温）采用谷轮ZB全封闭压缩机，功率从2HP—10HP，使用6级电机，可分别满足于可分别满足于-5℃—10℃、-10℃—-18℃的需要，可广泛用于宾馆、饭店、食品、卫生、医药、农业、化工等行业。

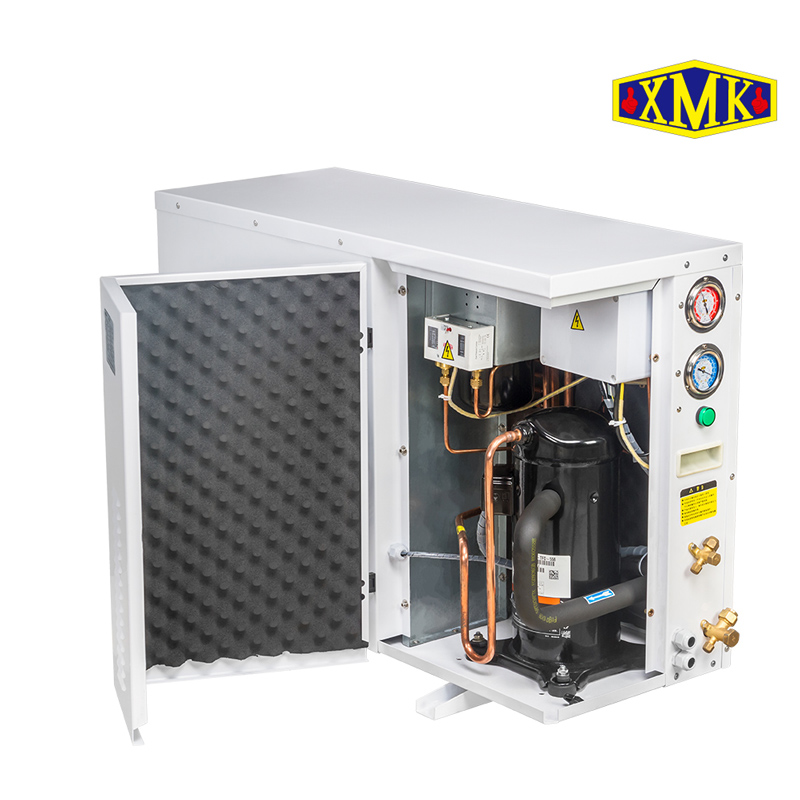

ZB15KQE Copeland ZB Compressor Cold RoomProduct description:This BUW-A series products with Emerson scroll compressor,applicable to cold display cabi-nets, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5'C~ 10"C.-l0'C~ -18C-18'C~-23"C. They can be widely used in hotels, restaurants, medicines, agricultur-al, chemicals industries all other place where cold storage is needed.1.Products adopt vertical box-type structure,compact structure design, excellent appear-ance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series scrollcompressor and ZSI series scroll compressorwith DTC spray to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt L-type condenser, it has large windwardside, small wind resistance and good heattransfer effect.5.Adopt 6-pole external rotor motor with lowspeed and low noise.6.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Copeland ZB15KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -5 degree Compressor Model ZB15KQE Compressor Max.I(A) 6 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.5 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 700

15公分冷库板以聚氨酯为芯材，以彩色钢板、304不锈钢或压花铝板作为外部材料的夹心板，具有良好的绝缘性能，可以降低由于内外温差达到冷冻、冷藏系统的最大效率的热传导。

冷凝机组采用谷轮全封闭压缩机，功率从2HP—6HP，使用6级电机，一改传统的全封闭冷凝机组的形式，可分别满足于-5℃—10℃、-10℃—-18℃、-18℃—-35℃的需要，可广泛用于宾馆、饭店、食品、卫生、医药、农业、化工等行业。

主要针对冷库应用而设计的,采用艾默生涡或丹佛斯涡旋压缩机。空调型式的机箱，低噪音风机。中温（MLZ或ZB）：2-7HP；低温（ZSI）：2-7HP带喷液。

以比泽尔压缩机为主机，功率从2HP—50HP，半封闭风冷冷凝机组广泛应用于保鲜及冷藏等制冷设备中。
