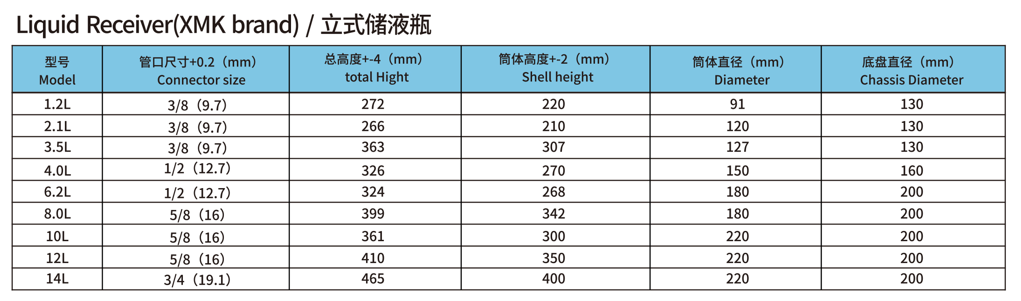

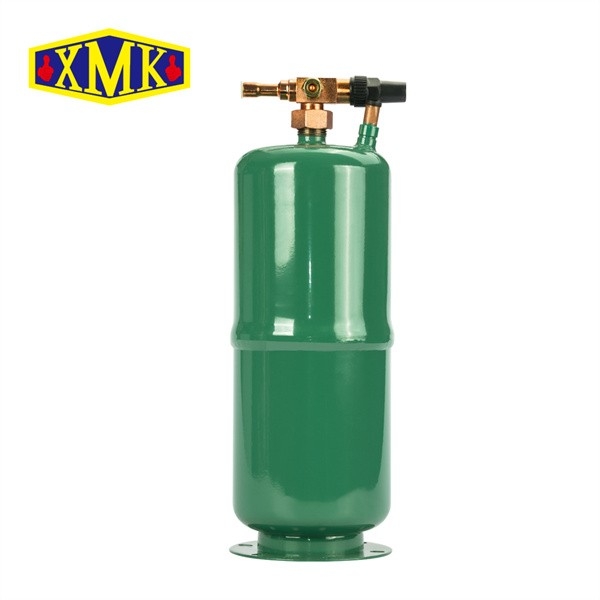

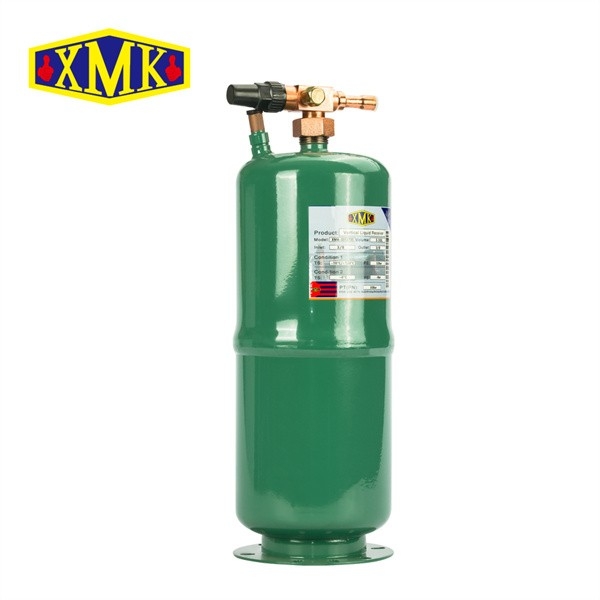

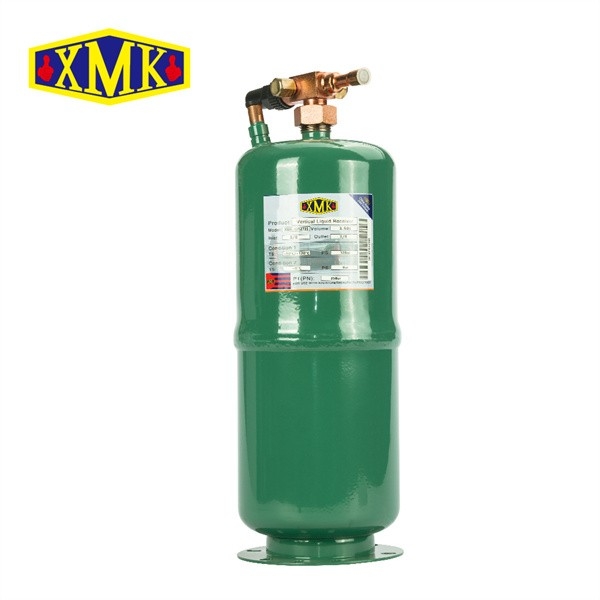

立式储液器

IDB系列工业型双面侧吹风型冷风机主要用于中大型冷库操作间。

特制速冻冷风机适用于食品冷冻及隧道冻结的任何设计要求，低噪音模式操作,能源消耗低。

CWS/EWS系列冷风机主要采用风筒型风机设计。CWS主要用于普通的中大型冷库，EWS主要用于防爆型原料冷库

冷凝机组采用谷轮全封闭压缩机，功率从2HP—6HP，使用6级电机，一改传统的全封闭冷凝机组的形式，可分别满足于-5℃—10℃、-10℃—-18℃、-18℃—-35℃的需要，可广泛用于宾馆、饭店、食品、卫生、医药、农业、化工等行业。

精美紧凑的外形设计提升冷库空间利用率；管排设计更合理，可大幅减小风阻，提高单位换热效能；提高产品材质标准和生产工艺标准，有效提升产品质量及稳定性。定制版加强型风扇，增强风扇功率及调整扇叶角度；配合高拉伸风口，提高产品有效射程。

 0℃以上：水果保鲜库，医药保鲜库，化工保鲜库，蔬菜保鲜库，电子原材料保鲜库，鲜花保鲜库，菌类保鲜库，菌类生产车间，低温冷库，肉类保鲜库、饮料保鲜库，啤酒保鲜库。

两个风扇 400mm 工业蒸发器 翅片空间 4.2MM 镀锌钢外壳，耐腐蚀高亮粉末涂层表面，用于-5~5℃冷藏的新鲜食品。

防水防潮防雾 超强耐低温-45℃

ZB15KQE Copeland ZB Compressor Cold RoomProduct description:This BUW-A series products with Emerson scroll compressor,applicable to cold display cabi-nets, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5'C~ 10"C.-l0'C~ -18C-18'C~-23"C. They can be widely used in hotels, restaurants, medicines, agricultur-al, chemicals industries all other place where cold storage is needed.1.Products adopt vertical box-type structure,compact structure design, excellent appear-ance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series scrollcompressor and ZSI series scroll compressorwith DTC spray to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt L-type condenser, it has large windwardside, small wind resistance and good heattransfer effect.5.Adopt 6-pole external rotor motor with lowspeed and low noise.6.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Copeland ZB15KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -5 degree Compressor Model ZB15KQE Compressor Max.I(A) 6 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.5 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 700
